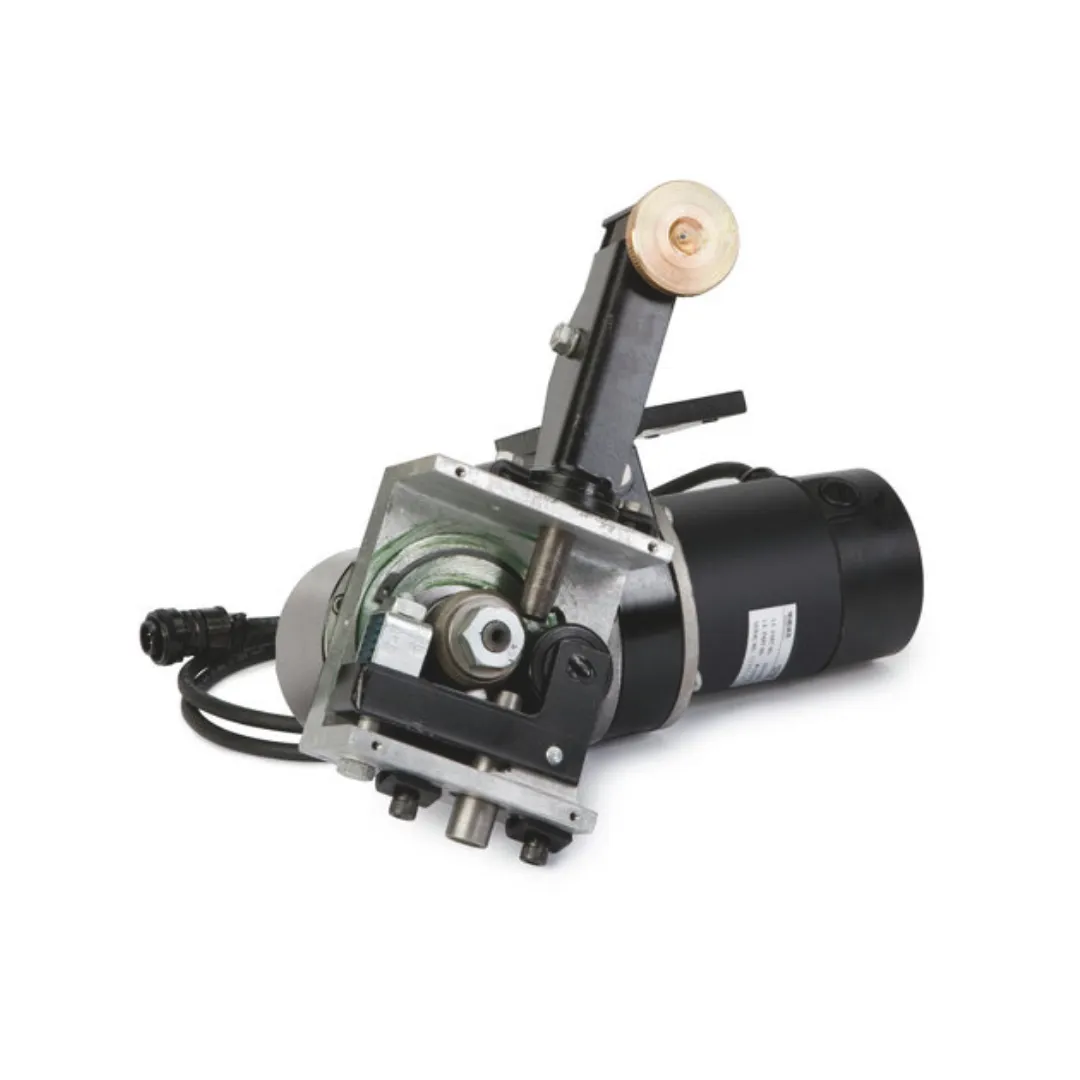

Wire Drive for NA-3SF and NA-4F automatic wire feeders. Without high frequency insulation. For 3/32 to 7/32 in (2.4-5.6 mm) solid electrode wires. 142:1 Gear ratio.
Features
- Wire Drive for NA-3SF and NA-4F automatic wire feeders.
- For 3/32 to 7/32 in (2.4-5.6 mm) solid electrode wires. 142:1 Gear ratio.
- The NA-4 Wire Feeder is compatible with the Idealarc AC-1200.
Product Weights & Dimensions
| Dimensions (H x W x D) |
13.5 in x 11 in x 13.5 in (343 mm x 279 mm x 343 mm) |
| Net Weight |
30 lbs (13.6 kg) |
Wire and TIG Feeders
| Number of driven rolls |
1 roll |
| Feeder type |
Automatic |
| Configuration |
Single |
| Max spool diameter |
Drum |
| Communication Technology |
analog |
| Max Wire Diameter (Solid) |
7/32 in (5.6 mm) |
| Feedhead Configuration |
Wire Drive Only |
| Wire Configuration |
Single |
| More Information |
Gear Ratio. 142:1. Wire Dia. 3/32-7/32 in. WFS. Subject to arc voltage used. |
Basic Specification
| Input Voltage |
115 VAC |
| Input Hertz |
50/60 |
| Input Power |
115 VAC |
Application
| Typical Application |
Heavy Fabrication |
